Item

unit

parameter

Vehicle model

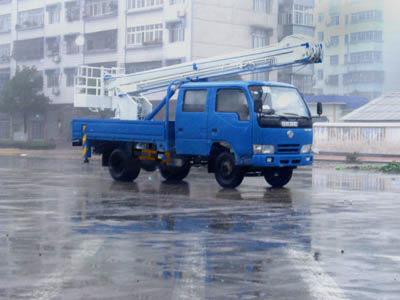

CLW5040JGKZ High-altitude Operation Truck

Chassis model

EQ1042N14DJ3A

Overall dimensions

mm

7400×1980×3110

Fact loading

kg

200

GVW

kg

Appro×4495

Rated loading capacity

Appro×160

Mass in working order

Appro×4010

Body internal dimensions

mm

3370×1800×400

Wheel base

3300

F/R track base

1380/1458

Approach/departure angle

°

19/15

Exhaust/hp

ml/kw

3707/70

Max speed

km/h

95

Tire specification

6.50-16,7.00-16

Engine type

CY4100ZLQ

Traction system

4×2

transmission

5-speed with over drive

Number of axles

2

Electric system

24v

Operation control  system

Electrically hydraulic control

Allowable passengers in cab

2+3

Equipment

◆max operation height≥13m,max operation radius≥5.7m,max working platform height≥11.5m, working platform rating loading=200kg, working platform rating allowable passengers=2, working platform dimension:1100*570*1000mm,360°turning(left or right),4 H-shape legs.

◆clients can shoose hydraulic parts made in China or Italy,to be mentioned.

Engine

ChaoYang diesel engine

Production cycle

25-30 days

Warranty

12 month,from the date of supply

Factory price

＄  &nbs, p;

FOB/DAF/CNF/CIF

＄
